ADVANTAGES TO INVESTING IN A FORCE FLEX

• "Force Flex Technology" or "Precision Nip Technology"
• "Dynamic Rotation Technology"
• The "Shaker" Vibrating Rear Wedge
• 2 Minute Belt Change
• 14" and 20" Units

TECHNICAL SPECIFICATIONS

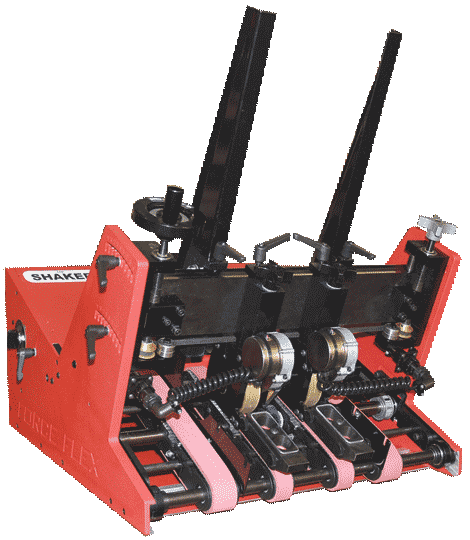

         Force Flex 14" Unit

• Maximum Product Size - 14" W x 17"L
• Maximum Product Size MM: 355.6mm W x 431.8mm L
• Minimum Product Size - 2" W x 3" L
• Minimum Product Size MM: 50.8mm W x 76.2mm L
• Product Thickness - .002" to 1"
• Product Thickness MM: .0508mm - 25.4mm
• Speed - Variable up to 60,000 pieces / hour
• Electrical - 120 VAC / 240 VAC / 5 AMP

         Force Flex 20" Unit

• Maximum Product Size - 20" W x 17"L
• Maximum Product Size MM: 508mm W x 431.8mm L
• Minimum Product Size - 2" W x 3" L
• Minimum Product Size MM: 50.8mm W x 76.2mm L
• Product Thickness - .002" to 1"
• Product Thickness MM: .0508mm - 25.4mm
• Speed - Variable up to 60,000 pieces / hour
• Electrical - 120 VAC / 240 VAC / 5 AMP

APPLICATIONS

Continuous Feed - Ink Jets, Tabbers, Folding, Labeling & more.

STANDARD FEATURES

Positional Separators, Positional Belts, Elevator Belts, Heavy Duty Industrial Construction, Removable Belt Carriage, Variable Speed, & The "Shaker" vibrating rear wedge.

Force Flex Technology Feature Advantages:

Force Flex Technology  - Utilizing the patented Dynamic Rotation Technology TM separators between the positional belt applies "flex" to the paper and will extend the life of consumable products. Force Flex Technology stabilizes the paper for a smooth transition through the feeder and allows for variable thickness product within the same stack.

Dynamic Rotation Technology  - Adjustable seprartor rotates a full rotation every 20 minutes of operation to elimnates flat spots.

The "Shaker"  - Vibrating rear wedge.

Precision Nip Technology  - Some products requires a high friction "Nip" point for separation. This feature is obtainable within 1 minute by the operator.

* Electrical Interface Options Are Available.

KEY FEATURES



Removable product guides that controls
piece from input to output.

Adjustment Levers from - 4 to +4.

Elevator Belt Adjustment Lever.

Powder Coated 1/2" side frames.

Controlling paper from input to output.

Ideal for feeding folded edge and thick material.

Removable belt carriage for 2 minute belt
change.

Independently adjustable side to side.
Either can be removed for single
separator applications.

.002" to 1" adjustment.
