In-feed transport by roller driven with frequency and speed adjusted
Maintenance free sealing system, continuously heated with integrated separating knife without sealing bands, separating wire or Teflon tape
Touch screen control with step by step product set up and operation interface
Teflon coated rotary wheel side seal will seal all types of film
Closing conveyor for running small packages
Hot knife cross seal bar with digital temperature control
Side sealing made by sealing unit composed by rotary hot wheels and transversal sealing bar that cuts in seal film on the front and back side of the products (with Polyolefine);
Automatic product separation conveyor for randomly spaced products
Automatic motorized inverting triangle
Automatic motorized cross seal and side seal height adjustment
Siemens PLC Control and solid state electronics allows for easy integration of feeders, collators and accumulators.
Variable speed control
Pinwheel film perforator air evacuation system- no film tearing
Self diagnostic feature will alert operator of problem
Programmable memory to store 30 package sizes
Easy access electrical control panel with solid state relays and contactors
Powered film scrap wind up with built in alarm when full
Easy load film rack- no lifting of roll overhead
No product- no cycle automatic machine stop
Horizontal and vertical photo eye provide automatic adjustment of package length
Machine is equipped with lexan security cover
Flighted in-feed conveyor with adjustable
CE approved.
ADVANTAGES:
- Touching belts, useful for the packaging of little products;
- Adjustable opening of the sealing bar in order to be able to increase the speed of production;
- Sealing bar, with hot blade and with digital control of the temperature, easily detachable for maintenance;
- Inverter on every motors;
- Film dispenser unit placed internally in the machine, aesthetically nicer, safer and less bulky;
- Film unwind unit with alarm when it’s full;
- Motorized automatic film inverting head;
- System of evacuation of the air made by perforators;
- Footsies or wheels, for an easy move,
- Vertical and horizontal photocells,for a rapid and proper detection of the product, they allow the automatic adjustment
of the length of the product;
- Functions & parameters are easily adjustable by the tactile touch screen;
- Programmable memory for the memorization of 30 different dimensions of products;
- Connection to Internet for the survey of problems
- Control through PLC SIEMENS and the solid electronic allows to integrate easily feeders, loaders and conveyors
- Connectors are already predisposed for the addition of conveyors in entrance and in exit;
- Machine is already prepared to be placed in a line;
- Connector in every motor to allow a rapid change;
- Control Panel with low voltage, approved by the CE, minimizes the risk of shock, and overcomes the safety standards
OSHA ( European agency for the safety and the health on the work ).

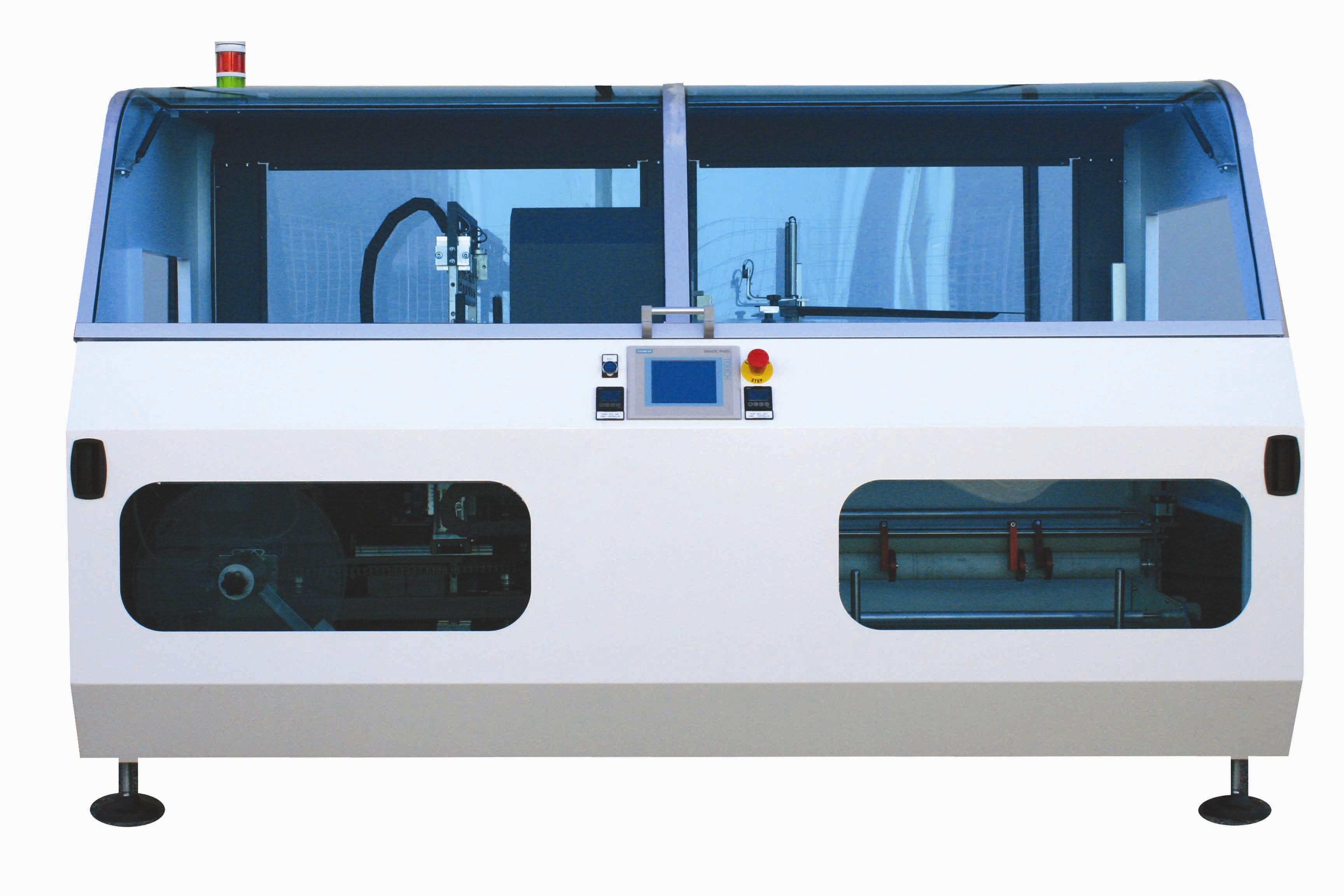

BOX MOTION MODELS:
In continous motion machines, instead sealing bar keeps on moving, not only vertically but also horizontally, following the products and avoiding start-stop produced by intermittent fix bar.
As a consequence the machine can reach high speed, thanks to the stability given by this box motion system.
In order to reach always higher speed and increase customer’s possibilities, we can offer the machine not only with pneumatic closure of sealing bar (standard one) but also in a version with motorized sealing bar or and servo motors.
TECNICHAL SPECIFICATION MACHINE MODEL F5000CONT
Width of Sealing Bars :
500 mm
Product’s Max. Width :
400 mm
Product’s max. Length :
endless
Product’s max Height :
200 mm – withOPTIONAL up to400 mm
Film Width :
650 mm
Reel Diameter :
350 mm
Electric Supply :
220-400 V 50-60 Hz monofase
Power :
6 Kw
Air:
6 bar costant
Working Height :
900 +/- 50
Machine’s Dimension :
L. 3500 X 1200 W X 1550 H
Weight :
800 kg
FULLY AUTOMATIC LINE WITH TUNNEL TD4500
TUNNEL MOD. TD4500- DOUBLE CHAMBER
Saving the space: tunnel is very compact
The tunnel is horizontally MOVABLE in order to be able to adjust it with the entrance of the product
The tunnel has the same shape of the machine, so it can be incorporated-one block with the machine or separated by a conveyor. STANDARD FEATURES
Fully re-circulating air chamber
Variable air velocity control
Live roller rod conveyor
Variable speed drive
Safety clutch
Automatic tunnel cool down with shut off
Thermic protection for change in tension
Usable with all types of film – P.E. film needs the tefloned belt
Live roller rod conveyor (roller system is standard but tunnel can be provided also with tefloned
net or metallic net);Bars can turn or can also stay still depending in which kind of film it’s used
TECNICHAL SPECIFICATION MACHINE MODEL TUNNEL TD4500
